arcoPlus^®۹۰۰ Reversò

DOWNLOAD PRODUCT SHEET

Modular system of bi-protected multiwall polycarbonate for translucent roofing applications

arcoPlus®۹۲۰۷-۹۲۵۷-۹۳۲۷ reversò are three modular systems consisting of co-extruded 7 walls polycarbonate panels with thicknesses of 20-25 or 32mm with 900mm module. These are fixed to the existing structure using specific anchor brackets. The panels are joined together by a protected polycarbonate cover plate assembled using a click-on system, or by an aluminium connector, for a perfectly watertight seal.

– arcoPlus9207 sp.20mm R_min=4.000mm
– arcoPlus9257 sp.25mm R_min= 5.000mm
– arcoPlus9327 sp.32mm R_min= 6.500mm

Features

Advantages
Easy and low-cost installation

Light transmission

Resistance to UV rays and to hail

Thermal insulation

Minimum bend radius 4,0m (with th.20mm

Applications
Translucent continuous roofing

Curved roofing

Production standards

Thickness	۲۰-۲۵-۳۲ mm
Structure	۷ walls
Effective modular width	۹۰۰mm
Panel length	No limits
Available colors	See page 11

Features

Thermal insulation	۱,۷-۱,۴-۱,۳ W/m²K
Acoustic insulation	۲۰ dB (9207-9257) 21 dB (9327)
Linear thermal expansion	۰,۰۶۵mm/m°C
Temperature range	-۴۰°C +120 °C
U.V. rays protection	۲ sides coextrusion
Fire reaction EN 13501-1	EuroClass B-s1,d0

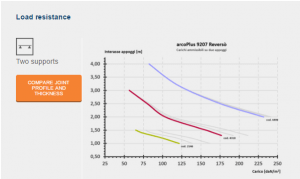

Load resistance

Joint profiles

Easy Installation

To ensure compliance with snow load and negative wind load resistance requirements, anchor brackets should be fitted for each purlin. The polycarbonate panels are fastened to the underlying structure using specific brackets, which must be anchored to the purlins using suitable self-drilling/self-tapping screws (on metal structures) and tap bolts (for wooden structures). These screws and bolts are not supplied. Different connector profiles can be used, depending on the required load specifications.

Assembly details
