Comparision Tables

Multiwall Sheets

Optical and Thermal properties (EN 16153)

profile	LIGHT TRANSMISSION (LT) %	SOLAR FACTOR (SF) %	SHADING COEFFICIENT (SC)	THERMAL TRASMITTANCE (U-VALUE) Wm²K
Policarb 2P-4mm				3,9
crystal	80	79	0,91
bronze	63	75	0,86
opal	50	66	0,76
Policarb 2P-4,5mm				3,9
crystal	80	79	0,91
bronze	63	75	0,86
opal	50	66	0,76
Policarb 2P-6mm				3,6
crystal	82	81	0,93
bronze	60	72	0,83
opal	50	66	0,76
Policarb 2P-8mm				3,3
crystal	82	80	0,92
bronze	65	75	0,86
opal	50	65	0,75
Policarb 2P-10mm				3,0
crystal	81	80	0,92
bronze	65	75	0,86
opal	50	64	0,74
Policarb 16mm WIDE				2,5
crystal	85	83	0,95
bronze	65	70	0,80
opal	50	65	0,75
Policarb 3P-10mm				2,7
crystal	74	75	0,86
bronze	65	72	0,83
opal	52	62	0,71
Policarb 3P-16mm				2,3
crystal	74	76	0,87
green	60	70	0,80
bronze	40	55	0,63
blue	45	70	0,80
opal	52	57	0,66
Policarb 3P-20mm				2,1
crystal	74	75	0,86
bronze	40	55	0,63
opal	52	63	0,72
Policarb 4P-6mm				3,1
crystal	79	78	0,90
opal	45	53	0,61
Policarb 4P-8mm				2,7
crystal	79	78	0,90
opal	45	53	0,61
Policarb 4P-10mm				2,5
crystal	70	70	0,90
opal	45	53	0,61
Policarb 5P-16mm RDC				2,1
crystal	66	70	0,80
bronze	30	45	0,52
opal	40	55	0,63
Policarb 5P-20mm RDC				1,8
crystal	63	67	0,77
bronze	28	43	0,49
opal	40	49	0,57
Policarb 5P-25mm RDC				1,6
crystal	60	64	0,74
bronze	27	41	0,47
opal	40	45	0,52
Policarb 6P-16mm				1,8
crystal	60	62	0,71
opal	40	45	0,52
Policarb 6P-20mm				1,6
crystal	58	60	0,69
opal	38	43	0,49
Policarb 7P-25mm				1,4
crystal	58	62	0,71
opal	40	45	0,52
reflecto	40	40	0,46
Policarb 7P-32mm				1,2
crystal	57	61	0,70
opal	39	43	0,49
reflecto	35	37	0,43
Policarb 7P-40mm				1,1
crystal	55	59	0,68
opal	35	39	0,45
reflecto	33	35	0,40
Policarb 11W-25mm				1,3
crystal	45	52	0,68
opal	33	44	0,40
Policarb 11W-32mm				1,1
crystal	44	51	0,59
opal	29	38	0,44
Policarb 11W-40mm				1,0
crystal	43	50	0,57
opal	25	34	0,39

Modular System

Optical, Thermal and acoustic properties (EN 16153)

profile	LIGHT TRANSMISSION (LT) %	SOLAR FACTOR (SF) %	SHADING COEFFICIENT (SC)	THERMAL TRASMITTANCE (U-VALUE) Wm²K	ACOUSTIC INSULATION Wm²K
ArcoPlus^®324				1,8	16
crystal	70	74	0,86
green	65	70	0,80
bronze	60	67	0,77
opal	45	50	0,57
ArcoPlus^®625				1,7	16
crystal	70	74	0,86
opal	52	57	0,66
ArcoPlus^®344x				1,7	19
crystal	72	77	0,89
green	65	70	0,80
bronze	50	62	0,71
opal	49	60	0,69
ArcoPlus^®347-547				1,1	21
crystal	54	56	0,67
green	60	65	0,75
bronze	40	47	0,54
opal	31	46	0,53
ArcoPlus^®549				1,0	21
crystal	50	56	0,67
opal	28	46	0,53
ArcoWall^®5613				0,7	22
crystal	37	45	0,52
opal	20	36	0,41
ArcoPlus^®684				3,3	18
crystal	70	71	0,82
bronze	45	50	0,57
blue	50	55	0,63
opal	42	55	0,63
ArcoPlus^®6104				3,0	18
crystal	70	70	0,80
bronze	45	50	0,57
blue	50	55	0,63
opal	38	53	0,61
ArcoPlus^®6124				2,7	19
crystal	68	70	0,80
bronze	45	50	0,57
blue	50	55	0,63
opal	36	52	0,60
ArcoPlus^®6166				1,8	20
crystal	59	63	0,72
green	49	54	0,62
bronze	41	46	0,53
opal	34	49	0,56
ArcoPlus^®626				1,7	20
crystal	58	62	0,71
green	48	53	0,61
bronze	40	45	0,52
opal	33	48	0,55
ArcoPlus^®9207				1,7	20
crystal	55	60	0,69
opal	43	53	0,61
ArcoPlus^®9257				1,4	20
crystal	54	60	0,69
opal	43	53	0,61
ArcoPlus^®9327				1,3	21
crystal	53	60	0,69
opal	41	52	0,60
Velario^®613				2,7	16
crystal	76	81	0,69
opal	58	66	0,60
Velario^®205				1,7	16
crystal	70	74	0,86
opal	52	57	0,66
ArcoPlus^®1000				2,7	16
crystal	70	74	0,86
opal	40	45	0,52
ArcoPlus^®SUPER1000				1,8
crystal	65	66	0,76
opal	37	40	0,46
ArcoPlus^®GrecaClick				3,0	16
crystal	70	74	0,86
opal	45	50	0,57
ArcoPlus^®MiniGreca				3,0	16
crystal	70	74	0,86
opal	45	50	0,57
ArcoPlus^®Onda – 6mm				3,2	16
crystal	73	77	0,89
opal	45	50	0,57
ArcoPlus^®Aislux Polivalente				1,3	21
crystal	60	65	0,75
reflecto	40	40	0,46
ArcoPlus^®Aislux Aisluxecure				1,4	21
crystal	58	62	0,71
opal	40	45	0,52
ArcoPlus^®Aislux Complet				1,3	21
crystal	58	62	0,71
opal	35	40	0,46
ArcoPlus^®Aislux PS				1,3	21
crystal	58	62	0,46
opal	35	40	0,46
ArcoPlus^®Aislux PSV				1,3 (25mm) – 1,4 (30mm)	21
crystal	60	64	0,74
opal	40	45	0,52

LIGHT TRANSMISSION (LT)

Different pigments are used to obtain different light transmission values. The values indicated in the table are based on calculations performed at specialist laboratories..

SOLAR FACTOR (SF)

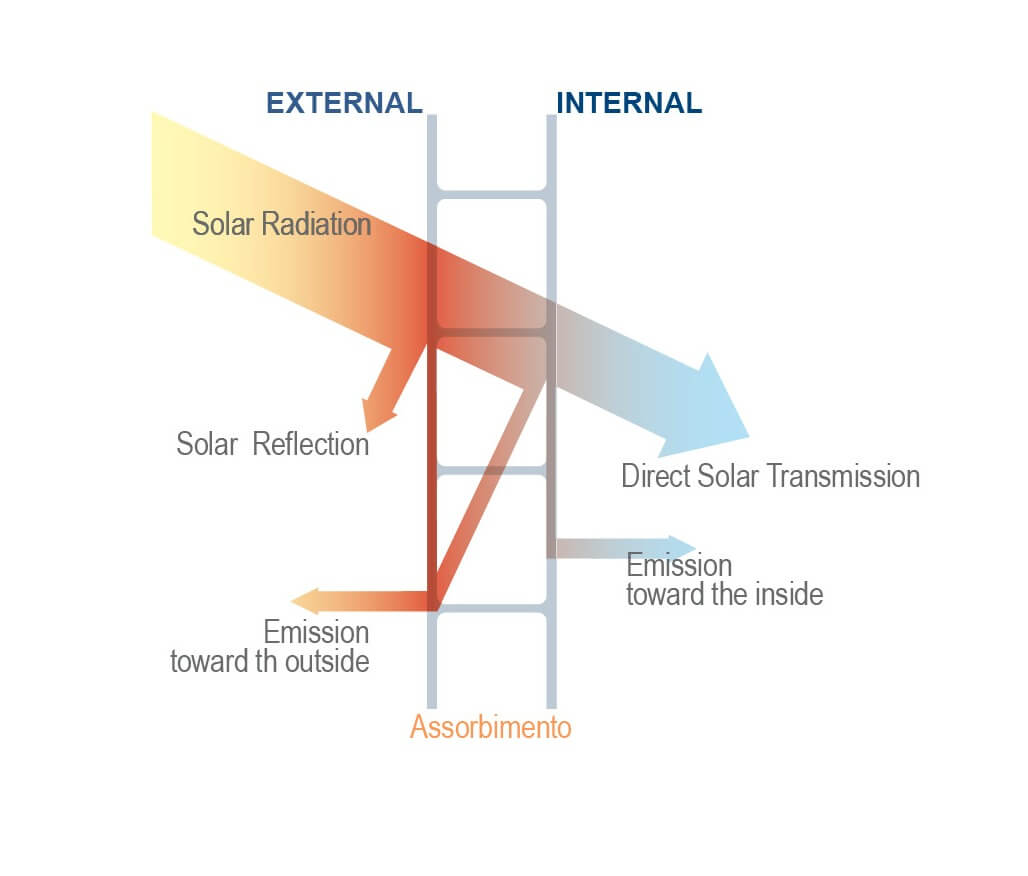

Incoming solar radiation is reflected, partially absorbed, and transmitted to the inside. The solar factor indicated in the table is the ratio, expressed as a percentage, between the total energy transmitted to the inside and total solar radiation.

SHADING COEFFICIENT (SC)

The shading coefficient of a transparent sheet is the ratio between the sheet’s solar factor and the solar factor of a clear sheet of glass with a thickness of 3mm (SC=SF/0.87).

THERMAL TRASMITTANCE (U-VALUE)

Heat loss is normally defined as thermal transmittance and referred to in physics as the “U-value”. It is the rate of heat loss through a unitary surface per degree centigrade difference in temperature between the two sides and depends on the properties of the material of which the structure is made and the linear thermal transmittance conditions.

ACOUSTIC INSULATION

Sound insulation refers to the ability of the material to resist the transmission of impact sound. It varies according to the frequency and the physical properties, dimensions and installation constraints of the component.
